The Pulse of Power

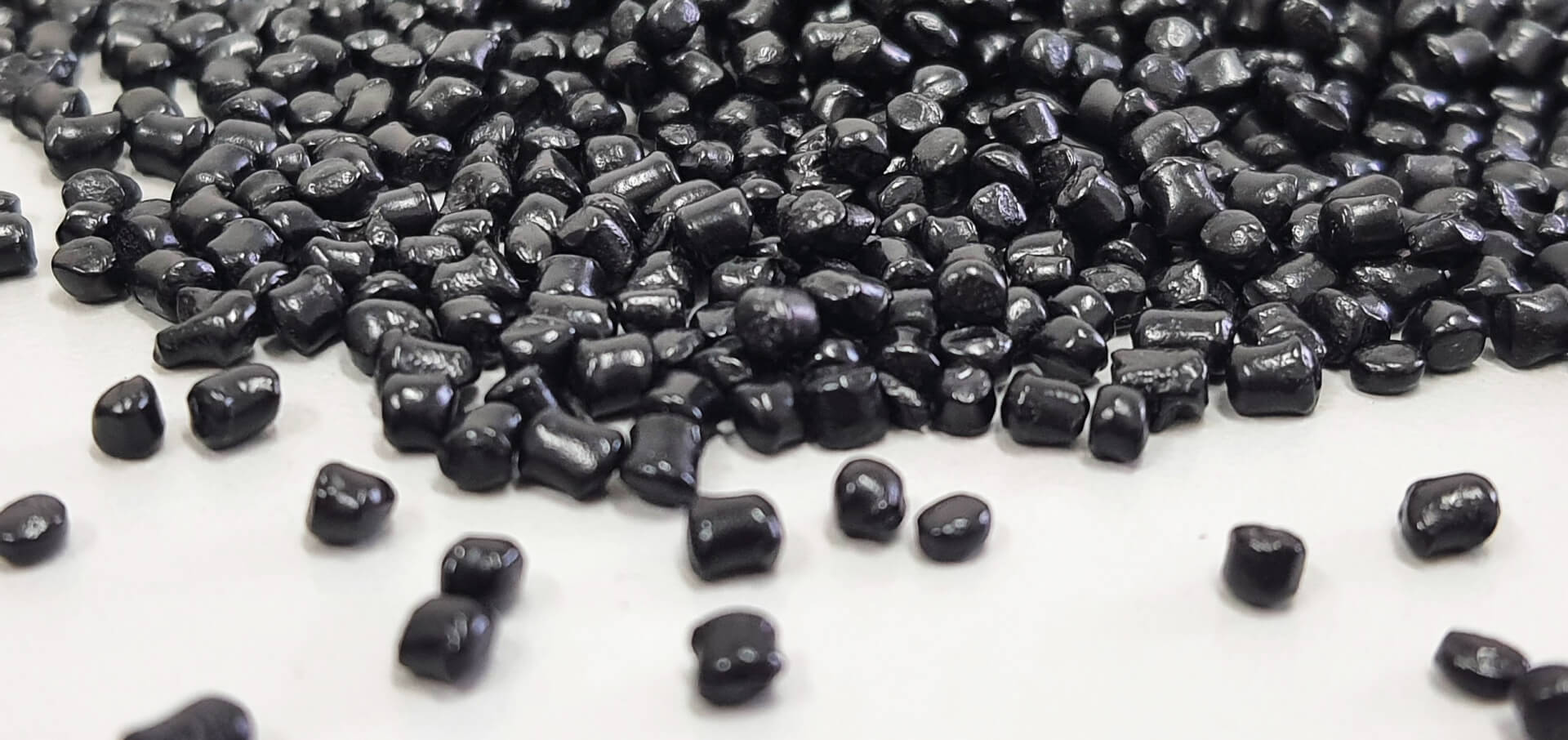

In the story of energy, where every wire carries purpose, Pexlane enters as a quiet force. Pexlan, a XLPE compound engineered by Micronized Powders of Iran, to insulate low voltage (LV) cables with integrity and endure, is a quiet backbone of modern connectivity. Engineered through experience and shaped by aim, Pexlane strengthens the standards of low voltage insulation with regional innovation and dependable quality.
Built with cross-linkable low-density polyethylene, Silane as the cross-linking agent, and specialized additives, Pexlane offers outstanding thermal resistance (continuous operation at 90°C, short-circuit tolerance up to 250°C), excellent electrical insulation with low dielectric losses, and robust mechanical strength. These qualities make Pexlane ideal for demanding power application – delivering lightweight, flexible, and high-performance protection in everything from general purposes to critical applications, meeting both electrical and mechanical performance criteria. Pexlane is specifically designed for low-voltage cables (up to 1 kV), addressing the specialized requirements of associated industrial sectors.

Pexlane's Functional Series

Pexlane is available in 5 specialized series; Power, Communicatin, Transportation, Energy, industrial Equipment

Pexlane Power

Silent guardian of energy, delivering flame-safe power with unwavering reliability.

Pexlane Communicatin

Weaves protection into every signal, preserving clarity with halogen-free resilience.

Pexlane Transportation

Moves with strength and grace, enduring stress while shielding against fire.

Pexlane Energy

Transforms demanding energy flows into safe, stable, and flame-resistant currents.

Pexlane industrial Equipment

In the heart of machines, Industrial Equipment breathes life into steel’s silent soul.

Pexlane's Solutions

Wire & Cable

Sabahi's Singnature Grades

Pexlane is categorized into two distinct grades: Alpha and Pro. Each grade is designed to meet specific technical requirement, ensuring optimal electrical performance across a wide range of applications.

Alpha
Crosslinked for Strength. Purified for Excellence

Pexlane Alpha, leads the pack by maximizing Electrical performance by an optimized crosslinking degree, Purity and thermal and mechanical properties. Ideal for critical applications and technically demanding uses.

Pro
Smart Performance for Functional Demands

Pexlane Pro, a dependable XLPE solution designed for standard installations that do not require the heightened specifications of critical systems. It offers robust electrical and mechanical performance, making it a smart choice for general use

Pexlane Application Chart

Detailed Product Series Table
Series Distinction Grade Advantage
Power Insulation Alpha LOI≥35, Meet the Single Vertical Combustion for Thermoplastic Building Wire (IEC60332-1)
Insulation Eco Standard Flame and crack resistant, low smoke, safe and easy to process
Sheath Alpha Meet the Requirement on Bundle Combustion A and B Category (IEC60332-3A/B)
Sheath Pro Meet the Requirement on Bundle Combustion A and B Category (IEC60332-3C)
Sheath Eco Self-extinguishing, low-toxicity, strong and extrudes easily
Communication Insulation & Sheath Alpha High-speed extrusion, Meet IEC 60332-1 Standard
Insulation & Sheath Pro High-speed extrusion
Transportation Insulation & Sheath Alpha Meet the standard QC/T1037
Insulation & Sheath Pro Meet the standard QC/T1037
Energy Insulation & Sheath Alpha High-speed extrusion, Meet EN50618 standard and the light transmittance reaches more than 60%
Insulation & Sheath Pro High-Speed Extrusion
Construction Insulation & Sheath Alpha LOI≥38; Bundle combustion ABC for 1.5mm²
Insulation & Sheath Pro LOI≥35; Bundle combustion AB for 1.5mm²
Electronics Insulation Alpha Elongation at break is over 300%
Insulation & Sheath Pro Good bending resistance

Quality Control

Quality isn’t a step, it’s the foundation. Every batch is precision-crafted to meet the highest standards of performance and reliability.

In additional, we are also doing

  • Gel content – ASTM D2765
  • Carbon Black Content – ASTM D1603
  • Carbon Black Dispersion Test – ISO 18553
  • Tensile strength – IEC 60811-1-1
  • Tensile strain – IEC 60811-1-1
  • Alongation at break – IEC 60811-1-1
  • MFI – ASTM D1238
  • DSC Test – ASTM D3418
  • Cold impact test – IEC 60811-506
  • Tearing Strength Test – ASTM D1922
  • Dielectric Constant (50Hz) – IEC60250
